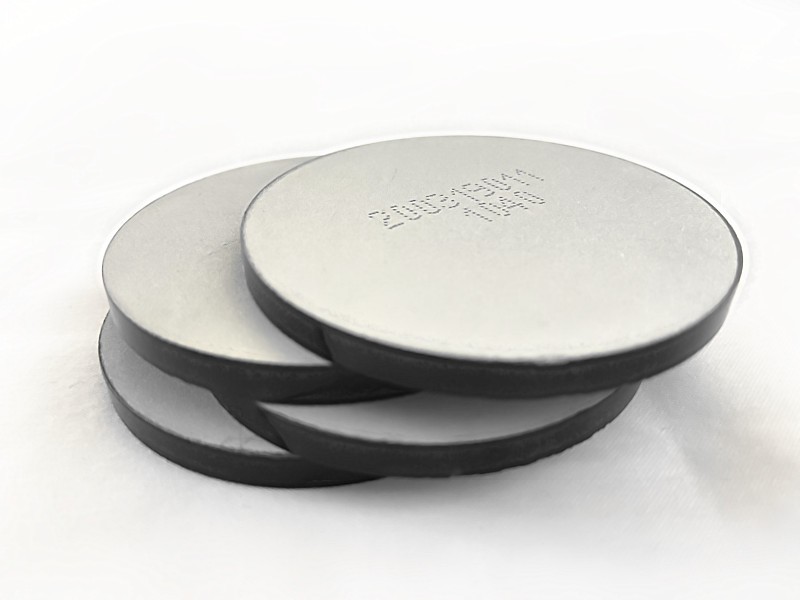

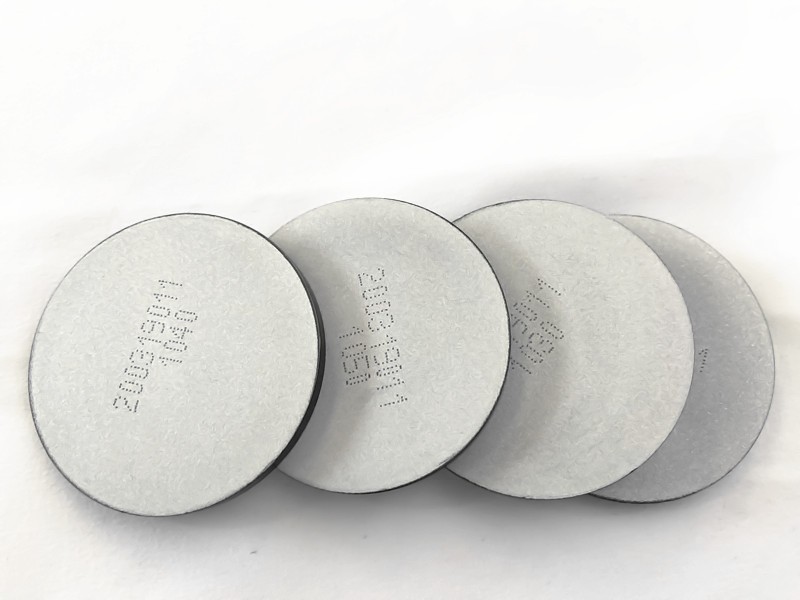

Low voltage varistor
D60*H3.0
Product Description
| Specification | Diameter | Thickness | D.C. reference voltage (U1mA) | Leakage current under 75%U1mA | Max. ratio of residual voltage (8/20us) | Current impulse withstand capability | Recommended rated voltage | Maximum energy absorption capacity | Recommended continuous operating voltage | |
| 4/10us 大 | 2ms | |||||||||
| mm | mm | kV | uA | at 5kA | kA | A | kV | kJ/kVr | kV | |
| MOV30×3 | 30±0.5 | 3.0±0.5 | 0.6-0.8 | <10 | 1.83 | 40 | 150 | 0.28 | 0.8 | 0.22 |
| MOV30×6 | 30±0.5 | 6.0±0.5 | 1.2-1.6 | <10 | 1.83 | 40 | 150 | 0.5 | 0.8 | 0.4 |
Product features:
2 spray granulator
40m the longest kiln in China
Certification: ISO9001 & 14001 & CQC, etc
Fine all aluminum electrode
Over voltage and high current withstand capacity
Low leakage current (under continuous operating voltage)
High quality nonlinear characteristics
Comply with GB / IEC / IEEE and other standards
Resistor can be connected in series flexibly
Resistor 100% fully aged
